5110T 7.25″ Bellhousing Kits feature a family of matched components to offer the highest level of performance and reliability.  Designed for applications that require a compact bellhousing for ground clearance, rear-starter, small diameter flywheel, and a 7.25” clutch.

Typical Applications

  • Stock Car
  • Road Racing
  • Drifting
  • Short Course Off-Road

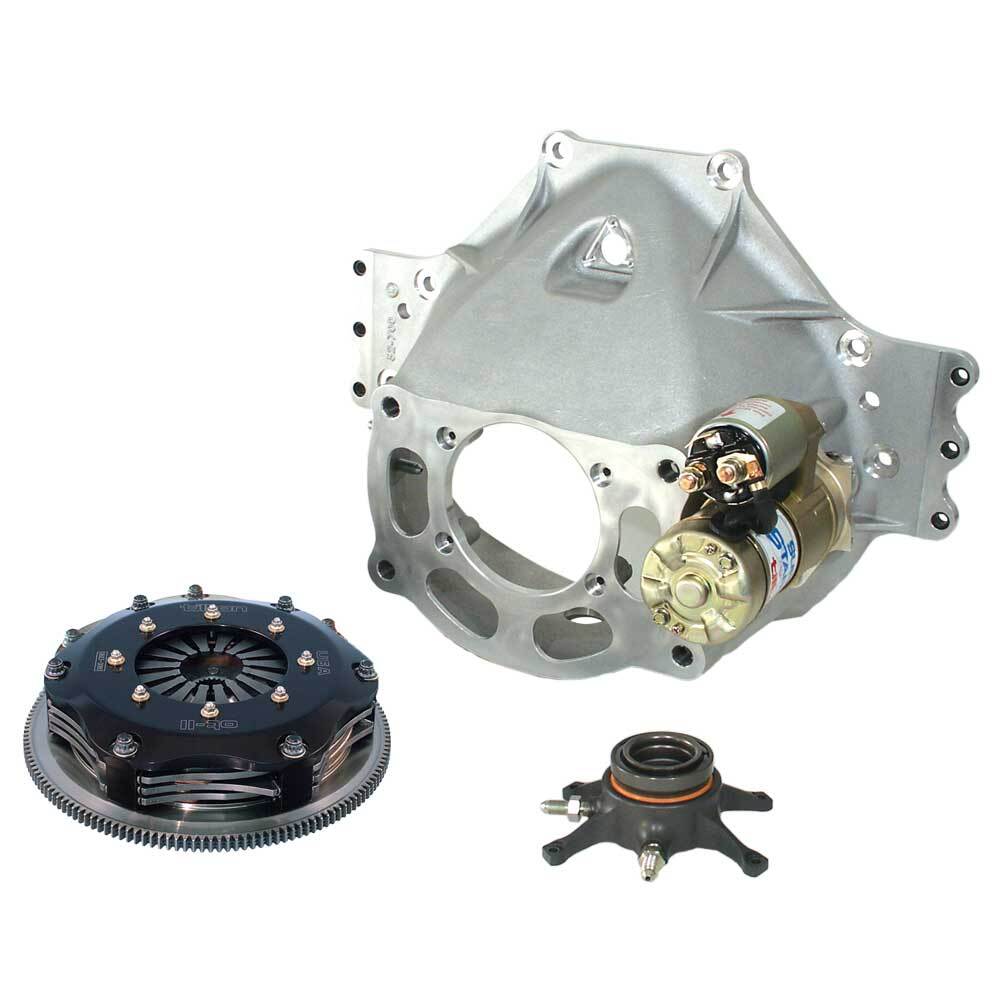

110T 7.25″ Bellhousing Kits include:

Bellhousing

  • Rigid aluminum bellhousing resists flexing, allowing maximum power to be transferred to the wheels and minimized wear to driveline components.
  • Integral mounting “ears”, with flanged inserts, for use as a rear engine mount.
  • Bulkhead-mounted fittings for release bearing hydraulic lines.
  • Provisions for cam-driven fuel pump.
  • Blueprinted for parallelism and concentricity.

Clutch-Flywheel-Assembly

  • 7.25″ OT-II metallic clutch assembly provides race proven performance and reliability.
  • Clutch discs feature 8-rivet hub design for maximum attachment strength.
  • Billet steel 110-tooth (9.16″) flywheel offers low inertia, precision balance and reliability.
  • Clutch mounting studs provide high strength and simplified clutch installation/removal.

Hydraulic Release Bearing

  • Billet aluminum body and piston.
  • Built-in positive stop limits piston travel to prevent over-stroking of the clutch.
  • High temperature quad tensioner monoseal insures a leak resistant seal.
  • Superior materials and proprietary low friction coatings provide longevity and
    consistency.
  • High quality 44mm contact diameter bearing maximizes clutch modulation and provides reliable operation.

Super Starter

  • Compact XLT (1.6 HP) Super Starter. 40000 Series (3.0 HP) Super Starter models are also available as an option. Contact Tilton for further information.
  • Double Reduction Drop Gear design provides smooth engine cranking.
  • Safety-wired fasteners.
  • Reflective-type starter heat shield, designed to block radiant heat from exhaust headers, bolts directly to the starter (XLT only).
SKU p_TI52-2010
Brand Tilton
