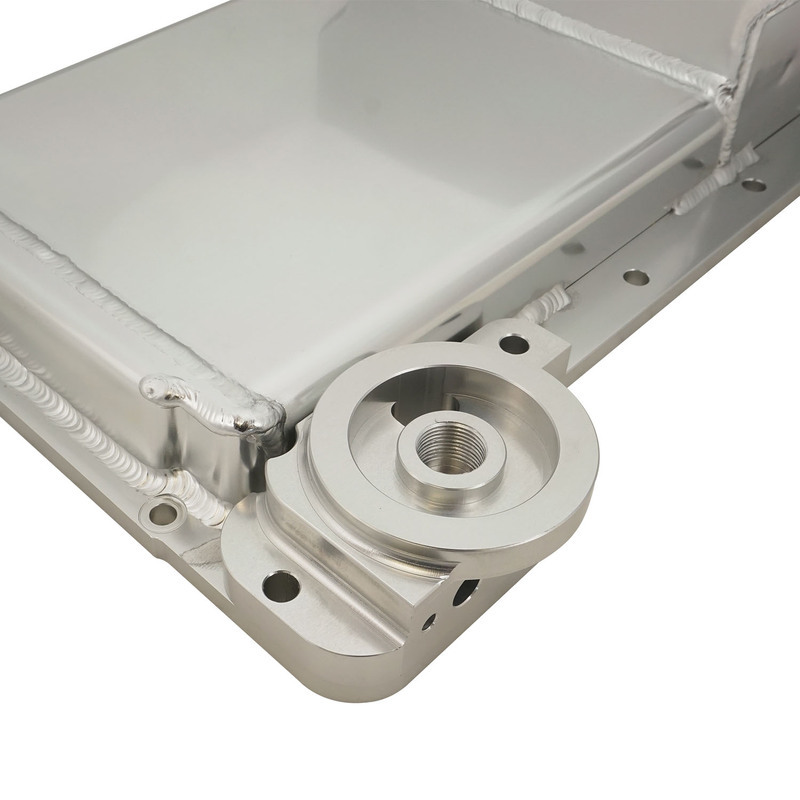

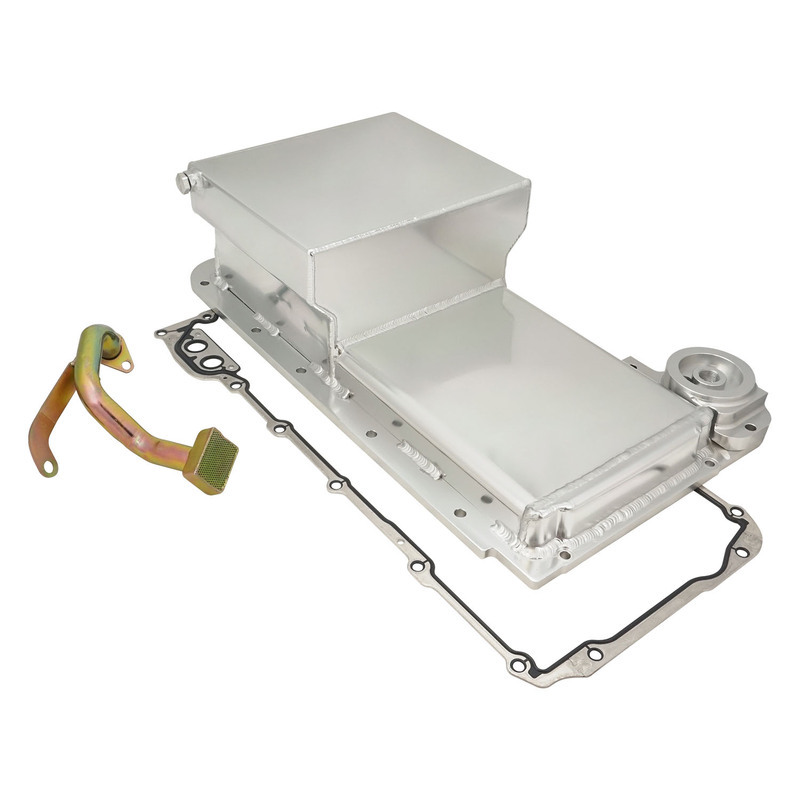

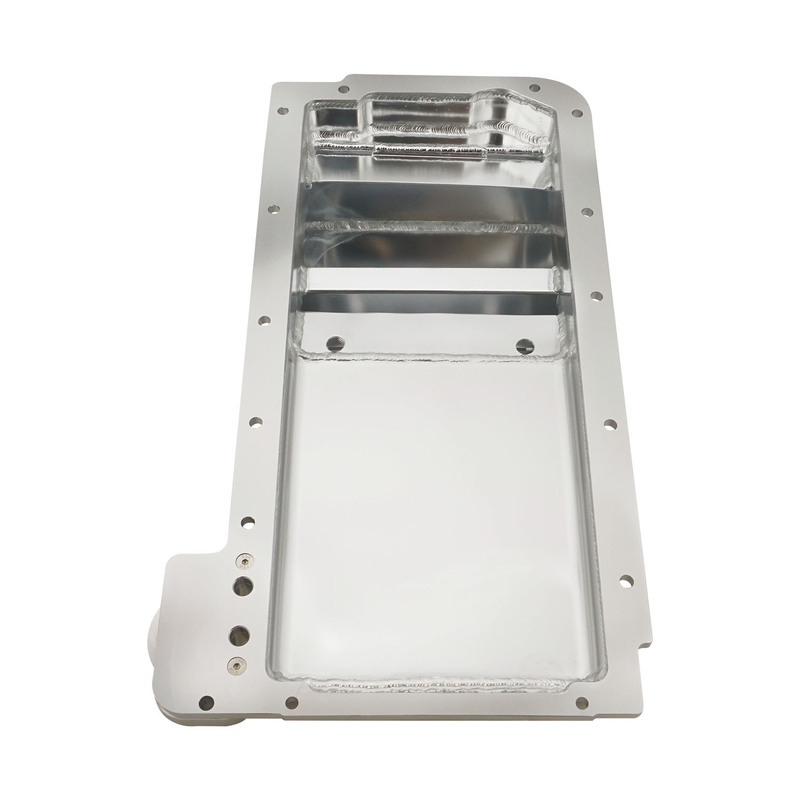

RTS’ LS fabricated oil pans allow for fitment in a wide variety of Holden/Chevrolet vehicles where a bulky cast aluminium pan cannot be used due to clearance issues. Fabricated from either 3 mm steel or 9.5 mm thick aluminium, these low profile pans have anti-slosh baffles and four trap doors to correctly baffle oil while maintaining a 6.5 L capacity. A wide variety of options are available which include remote oil filter kits or in-built AN10 fittings and come with a matte black coating. Designed for Gen III and IV LS wet sump applications. Note: The aluminium front sump versions can be made to suit VB-VT Holden Commodores with LS engines. Features: Sump is 6” deep for increased ground clearance 1.75" deep at shallow side 8.75" Long sump 10.25" wide at sump kickouts 21” length overall Pan depth at front half of pan is 1.75" for increased K-member/steering clearance Fits stroker kits up to 4.125” stroke with OE connecting rod design Anti-slosh baffles with four trap doors ensures oil is always around the pickup during acceleration and braking Pick-up tubes are included with all pans
SKU RTS-3003-ALUM
Brand RTS
Shipping Weight 6.0000kg
Shipping Width 0.300m
Shipping Height 0.600m
Shipping Length 0.300m
