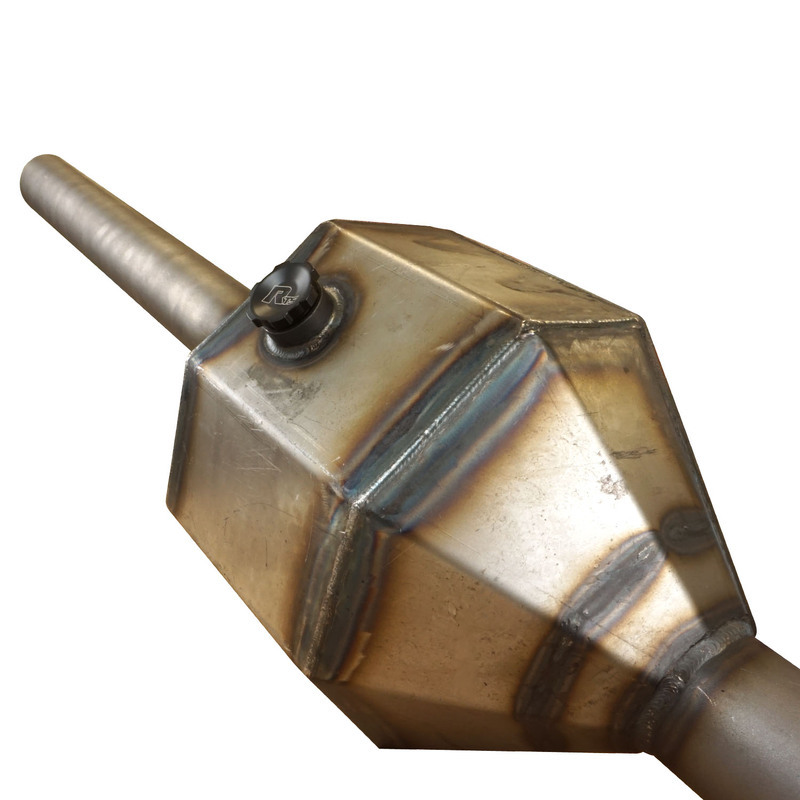

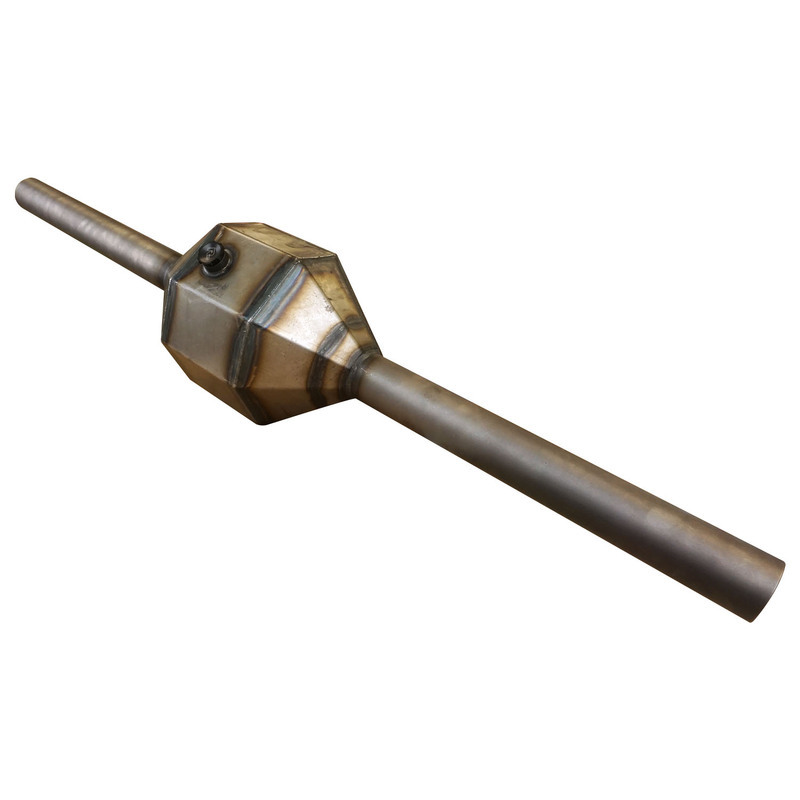

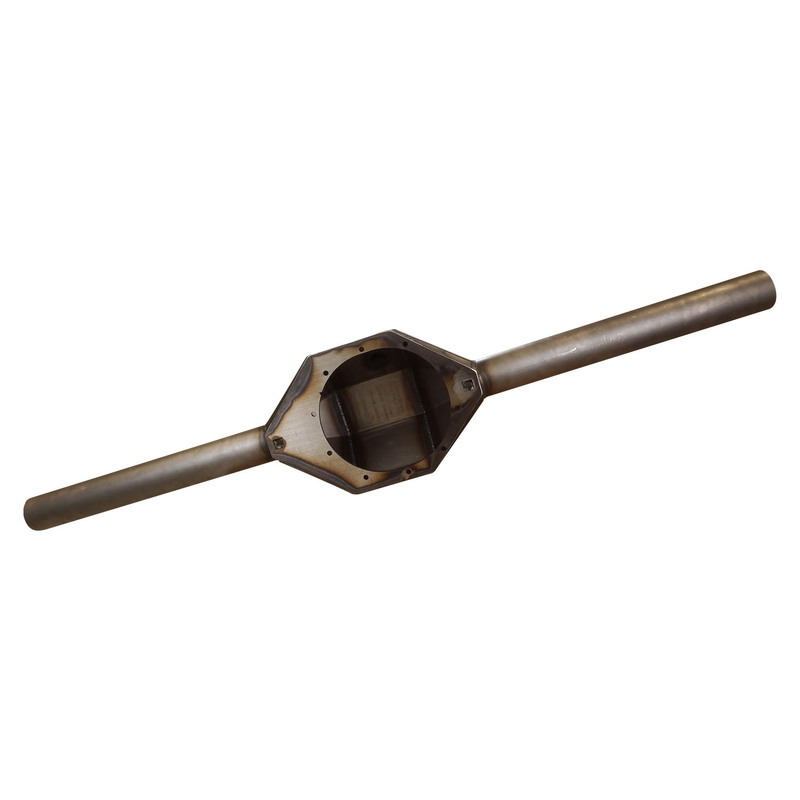

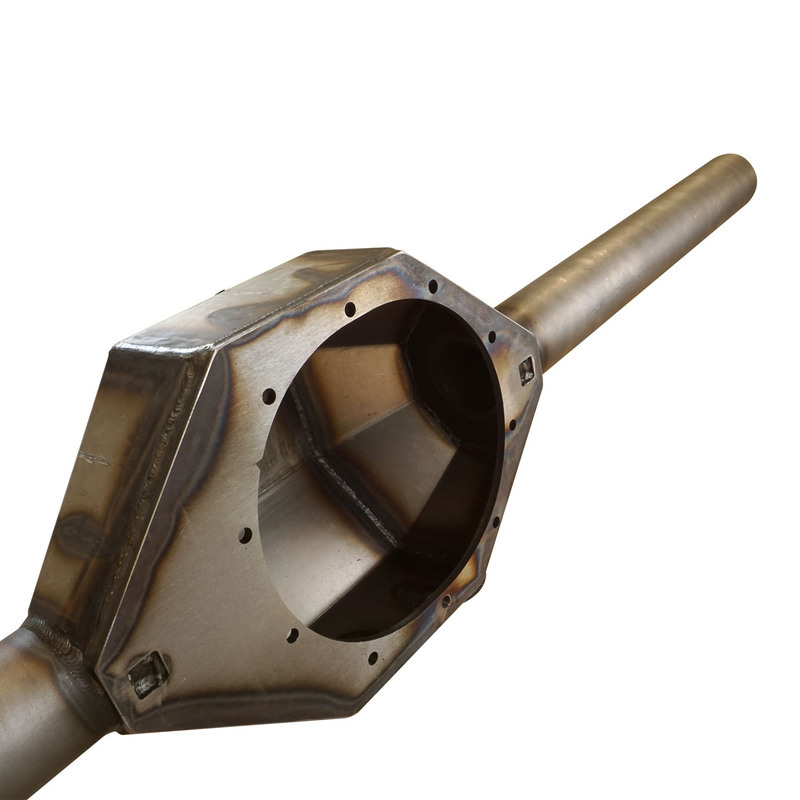

RTS’ Ford 9” fabricated rear axle housings are CAD designed to be as light as possible and laser cut for a great surface finish. Their triangulated design provides the structural integrity required for high performance racing applications or even for the street/strip. Constructed from mild steel, the outer shell is 3 mm thick and the faceplate is 6 mm thick. Configured for 9” diff gears, these housings come in a full-bodied car style, with cut to length 3” OD (0.18” wall) axle tubes which suit forged housing ends. Overall width of 60” and the faceplate accepts 3/8” studs and has a drain plug included. Features: Triangulated ridge design 1/4” fabricated steel center section 3” axle tubes (0.180” wall thickness) 3/8” thick mounting flanges Tube locations slotted & welded Clearance provided for cases with HD main caps Housings will accept 9.0'' and 9-1/2" gear sets Comes with center studs, billet fill plug, drain, and vent 7.20" overall housing width
SKU RTS-DC9001
Barcode # 9338762068541
Brand RTS
Shipping Weight 15.0000kg
Shipping Width 0.250m
Shipping Height 1.500m
Shipping Length 0.200m
