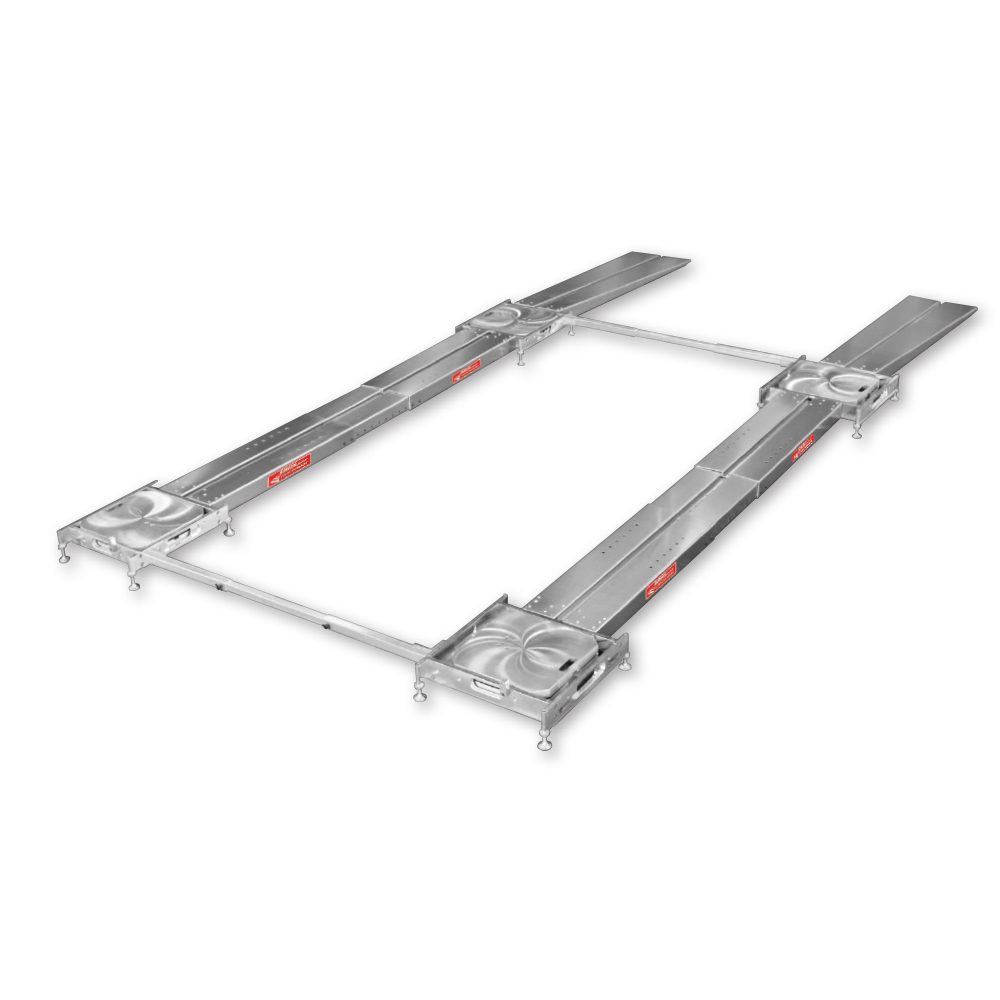

Adjustable Scale Platen Setup Fixture With 2 SideSliders



Billet Aluminum Modular Setup Platen

Best regidity for accurate setups.

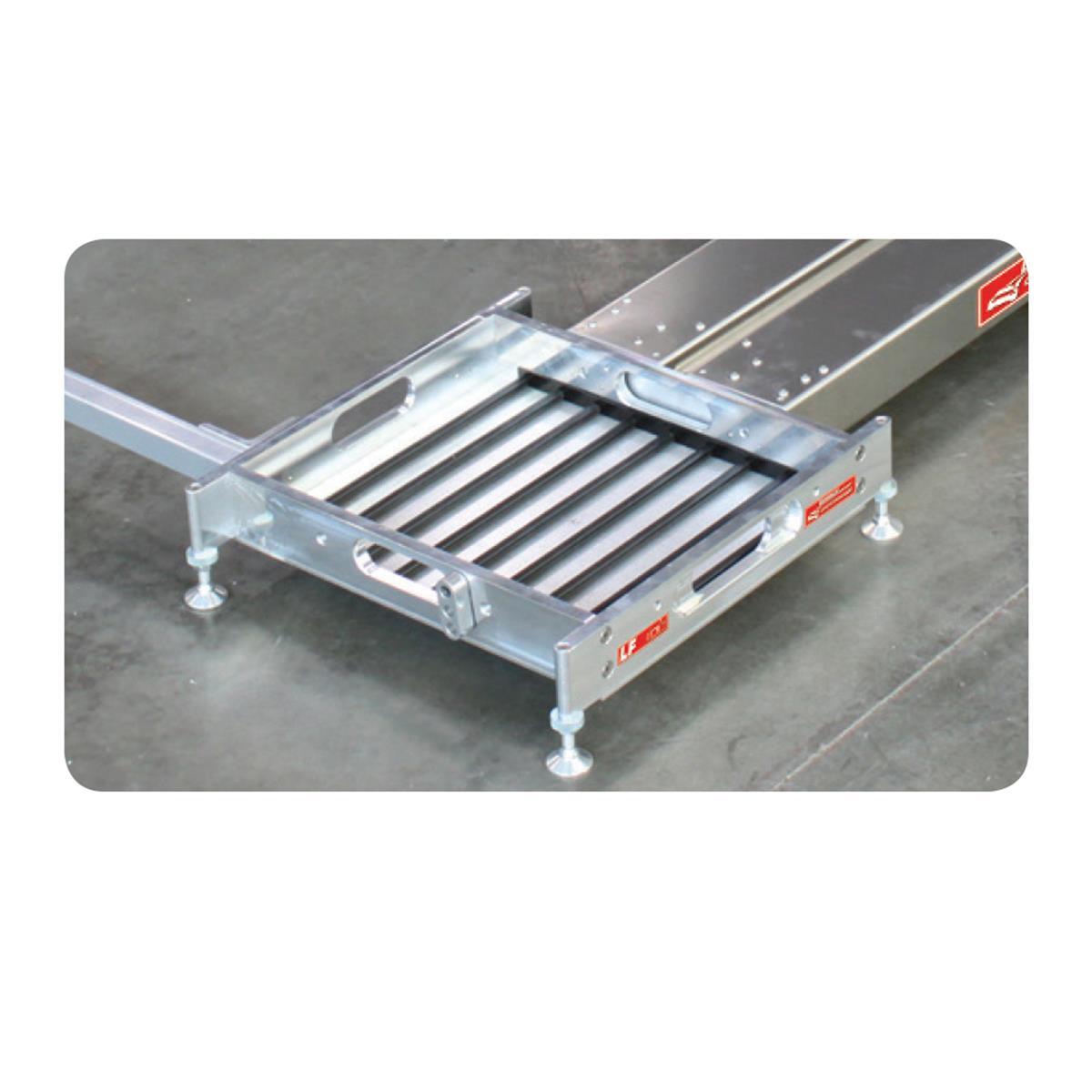

Scale pad levelers are CNC machined from T6 aluminum billet with a full floor for best pad support. SideSliders™ are included in LF & LR levelers.

  • Modular components are Easy-to-assemble and Easy-to-transport
  • Billet T6 aluminum scale pad levelers with a full floor for the best rigidity & most accurate setups
  • Wheelbase (90" - 110) and track width are fully adjustable
  • 24 swivel adjusting feet pop out for easy storage and transport
  • Spanners are attached to levelers and are flush with the top of the scale pad
  • For low profile 2 1/2" x 15" x 15" pads, wired or wireless

SideSliders™ allow the pads to float effortlessly sideways to relieve any chassis bind caused by camber change. SideSliders™ are installed in the LF & LR levelers.

Includes:

  • Four Billet Scale Pad Levelers with Pop-Out feet (24 total) and SideSliders™ installed in LF & LR
  • Two adjustable spanners
  • Two ramps
  • Two horizontal locator bars
SKU LA72865
Barcode # 9356659351835
Brand Longacre
