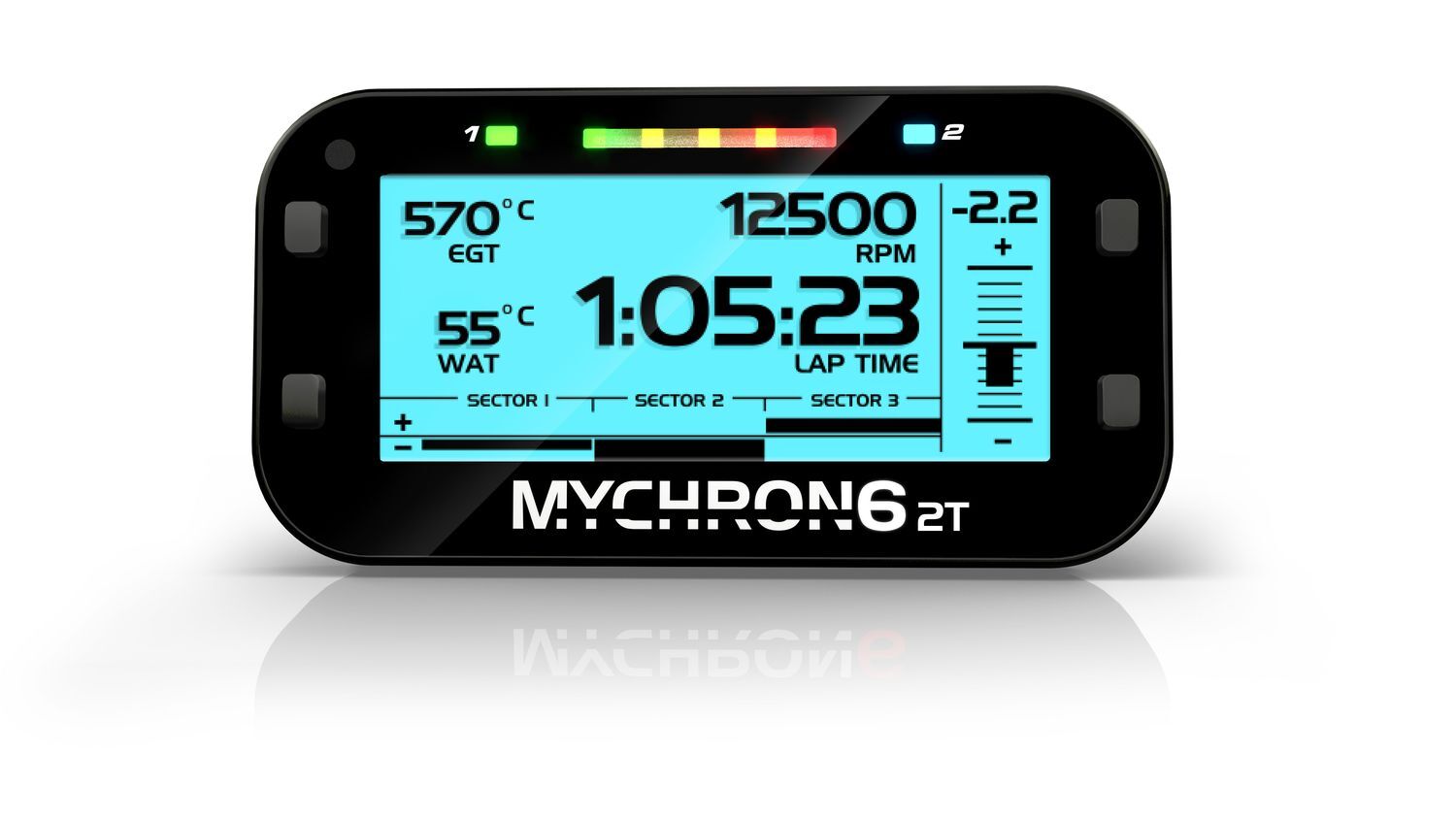

AIM MyChron6 2T Dual Temp Dash for X3 Excel Series

From 1994 to the present, MyChron has been a faithful companion for drivers and teams seeking ever-higher performance.
Today, the sixth generation of MyChron — with the integration of increasingly advanced technologies, such as high-precision GPS, 6-Axis IMU, Bluetooth connectivity, the second CAN for additional sensors and the long lasting battery — is transforming the new MyChron6 into a powerful data analysis center, capable of providing increasingly accurate and detailed information from different sources.

Key Features:

2 Temperature Sensors

Dedicated to the most demanding karting teams or drivers, MyChron6 2T manages two temperature values acquired by exhaust gas, cylinder head or water temperature sensors.

Not Just a GPS Laptimer

MyChron6 2T stands to be a complete data center for your kart. It samples and shows:

Bluetooth Connectivity

Experience seamless connectivity with the advanced Bluetooth module of MyChron6.
If you wish to measure your heart rate while racing, simply connect via Bluetooth the heart rate monitor to your MyChron6 and look the data on-screen or download them after the race.
Compatible with the most common heart rate monitor on the market.

Wi-Fi

Easy wireless data download via Wi-Fi, no need for data keys or PC connections. Update your device over Wi-Fi to ensure it always has the latest features and improvements.

Second CAN

The second CAN is dedicated to connect external modules requiring CAN communication protocols.

Dedicated Storage

The USB-C connector, in addition to allowing you to charge your logger, permits to store all your data in the optional massive 16 GB dedicated memory module.

3D Accelerations and Gyro

The 6-axis 100 Hz Inertial Measurement Unit (IMU) measures acceleration in the forward-backward, up-down and right-left directions and the angular velocity in the kart's pitch, roll and yaw directions, then calculates and relays that information in real-time to MyChron6 to control the engine and the behavior of the chassis to assist the rider.

Improved GPS

MyChron6 features an internal, high precision, 25 Hz four navigation satellite systems (GPS, GLONASS, BeiDou, Galileo) receiver and an internal database including information about the track: just switched ON, it automatically recognises the track and gets the information about the Starting Line Position and the Time Zone. The precision of the calculated Lap Times is 1/100 of second.

Track Database

MyChron6 can recognise the finish line coordinates of thousands of tracks all over the world. Opening RaceStudio 3 you will see the huge list of tracks included in the AiM database, sorted by nation, circuit and surface type: you will be able to create your own collection, adding/removing tracks. Should your home track be missing, after one lap its coordinates will be automatically detected by MyChron6 GPS and if you wish - once downloaded onto your PC - will be sent to AiM software Dept. to be included in the database.

Up to 20 Working Hours

Thanks to the new large high-performance battery and low-consumption electronics with up to 20 hours of autonomy, MyChron6 will be your reliable companion on the track without the need for recharging.

Data Recall

At the end of the test you can recall sampled data. Data recall is available in two types of race, road and oval (oval type is only available in US version). You'll have all the information of the tests taken, with different pages and dedicated views, on best lap times, best splits, best rolling lap time and the best theoretical lap, RPM graph and histograms.
