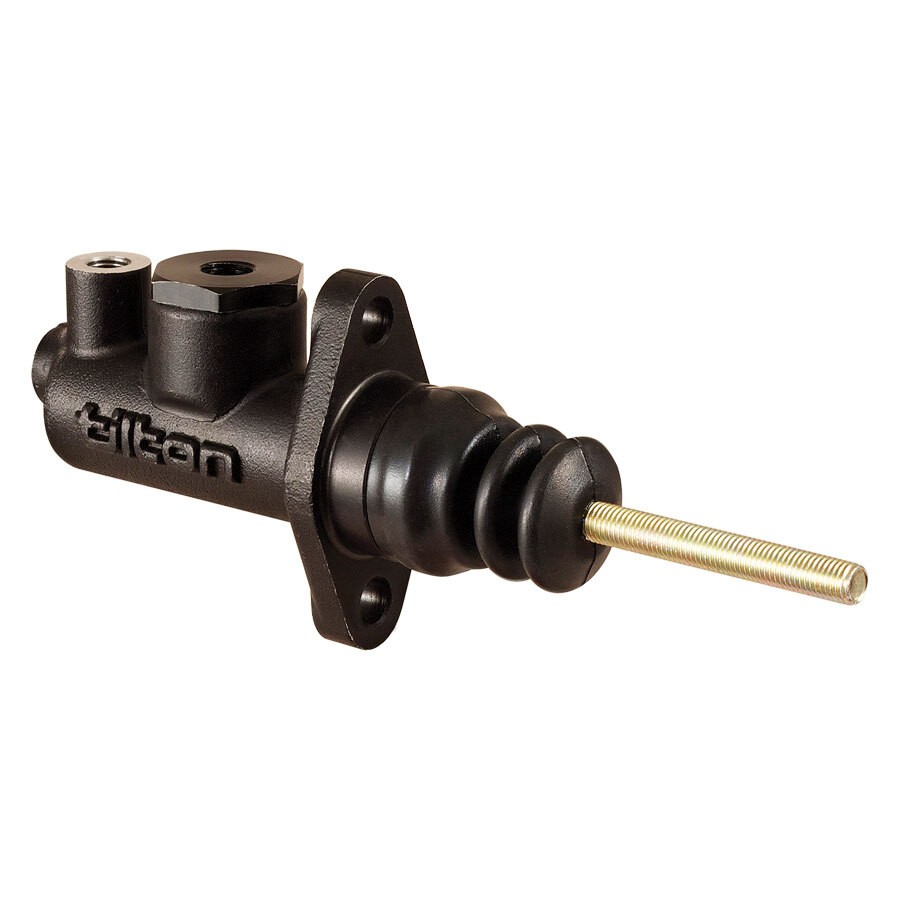

Tilton’s newly designed 76-series master cylinders incorporate new features, such as the added top outlet port, to provide universal appeal. The 76-Series master cylinder retains its rear port to continue to match the function of the old version, while the added extra-deep top port enables the use of a banjo fitting.

76-Series Master Cylinder Features

  • Addition of a top AN-3 outlet port (along with the original rear outlet port) allows for more flexibility with plumbing.
  • Optional use of either port to connect to a brake pressure sensor, bleed port, brake light switch, and more.
  • Top outlet port is compatible with both AN-3 and banjo fittings.
  • Both outlet ports can now be used with standard fittings without the need for modification or adapters.
  • Lighter, more compact body design provides additional clearance.
  • Tilton’s 76-series master cylinders are not designed for use with ABS.
Feature Description
Duel Outlet Ports Incorporates both top and rear AN-3 outlet ports, providing greater flexibility in plumbing configurations.
Banjo Fitting Compatibility The extra-deep top port is designed to accommodate banjo fittings, facilitating various installation setups.
Standard Fitting Usage Both outlet ports are compatible with standard fittings without the need for modifications or adapters.
Compact and Lightweight Design Features a lighter, more compact body, offering additional clearance and ease of installation in confined spaces.
Non-ABS Compatibility Note that the 76-Series is not designed for use with Anti-lock Braking Systems (ABS).



Click the icon below to download the installation instructions



Watch the Tech Videos below



SKU p_TI76-xxx
Brand Tilton
