VBOX Video HD2 Dual Camera Track Package

This Track Package includes roll cage camera mounts and an un-terminated power cable, which allows for easier fitting in fully race-prepared vehicles.

VBOX Video HD2 is the ultimate in video data logging for those who want to achieve better lap times and greater consistency at the wheel. The system consists of dual 1080p cameras, allowing for a main view with embedded picture-in-picture. The lenses are wide angle, ensuring that every moment of track action is captured in stunning high definition – making analysis in the free Circuit Tools software even more precise.

Key Features:

• 1080p30 HD Video: The system is equipped with two camera inputs, offering a main view and a picture-in-picture display. The wide angle lenses ensure that every moment of track action is captured in stunning high definition. It records video at 30 frames per second directly to an SD card or USB flash drive.
• CAN Data Logging: VBOX Video HD2 is compatible with any dash or ECU that outputs CAN, so you can log up to 80 channels of vehicle CAN data, such as throttle angle, RPM, or brake pressure.
• HDMI Output: Stream real-time video and audio to any HDMI-compatible monitor, recorder, or streaming device like LiveUSolo. This feature is perfect for broadcasting live motorsport events on TV or social media and provides instant feedback for race teams.
• Camera Alignment: Use the accompanying app on Android or iOS devices for precise tuning of camera orientation and displays real-time camera output on your mobile device.
• Customizable Graphics: Real-time, high-definition graphics overlays offer extensive customization options for dashboard and gauge layouts. Several default scenes are available, but you can also create your own to suit your specific needs.
• Auto-Track Map: The internal 25 Hz GNSS receiver recognises the racetrack you are driving and automatically configures the track map and lap timing.
• No data loss: Automatic recording, a pre-record buffer and internal power backup ensure that you capture absolutely all the race action.

Download data sheet here.

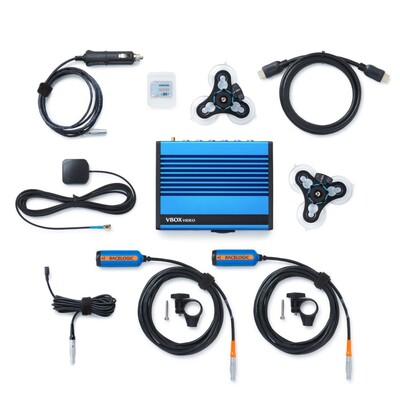

Kit Contains:

• HD2 data logger
• 2 cameras
• Microphone
• 2 Roll cage camera mounts
• Un-terminated in-car power cable
• GNSS Antenna
• 32 GB SD card
• HDMI cable

Predictive Lap Timing Display RLVBDSP05-L - this high contrast OLED display is the perfect partner to your VBOX VIDEO HD2.

CAN Splitter Cable RLCAB081 - required if logging from a CAN bus or Input Module and an OLED Predictive Lap Timer is also to be connected.
